EB1 Controller for your smoke chamber

Controller of the latest generation

EB1 is a modern, easy-to-use and reliable controller designed for the food industry. It is retrofittable and works with all brands of systems.

The EB1 controller helps you to have a more reliable and cleaner process. Food can be treated and smoked more energy-efficiently.

controller front panel
gif-navigation

Navigation

  • Touchscreen with intuitive user interface
  • haptic buttons for all basic functions
gif-programming

Program

  • Set up your programs on the screen
  • up to 99 programs with up to 99 steps each
  • 50 individual process steps
gif-ongoing-program

Running program

  • Change settings during operation
  • View change values ​​such as time, temperature, humidity, core temperature, etc
  • direct feedback on progress and error handling
gif-options

Options

  • make basic settings yourself
  • Advanced settings, single relay test, calibration of sensors and analog outputs, language, etc.

The controller explained in 4 steps

The modern controller for you smoke chamber

smoke chamber with controller

What are the applications of the EB1 controller?

Smoke systems, cooking systems, air conditioning systems, ripening systems, baking systems, etc.

Does it fit my system?

The EB1 controller can be retrofitted to all system brands. We will gladly make you a non binding offer. Conversion time ≈ 1.5 days.

What experiences do we have?

In the last 38 years, EBSmoke has produced thousands of controllers. The EB1 combines our reliable and proven technology with a modern user interface.

Our credentials >

Specifications

specs frontpanel
flush installation
10" touch screen, 900 nits
haptic buttons
RFID scanner (optional)
specifications image

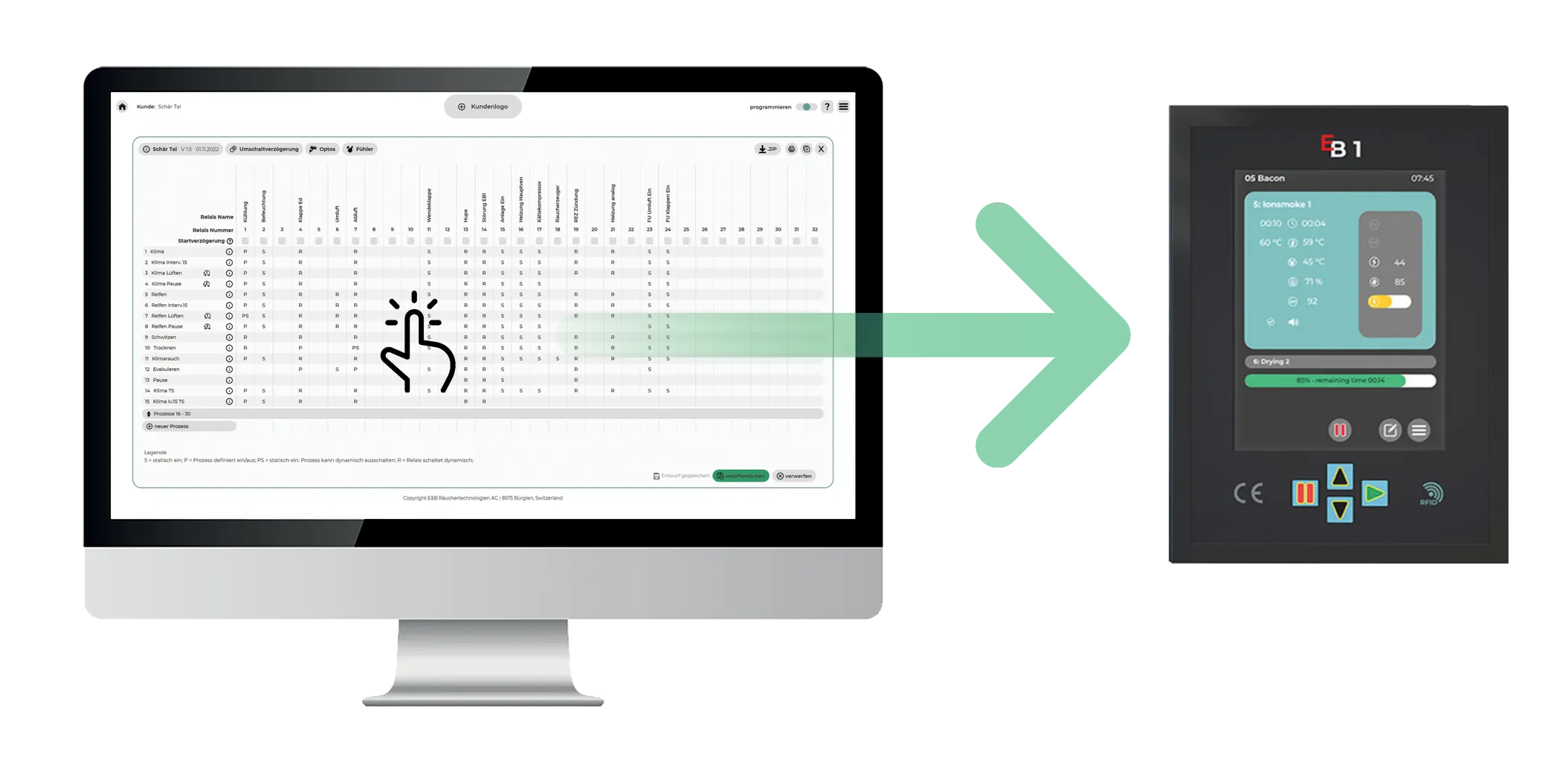

RJ45 network connection for data acquisition (EBLuft)
USB ports
Analog outputs: 4-20mA, 0-10V for proportional controllers, frequency converters, Belimo flaps, etc.
Analog inputs: electrical probes, pH meters, etc.
PT 100 inputs (2x, 3x, 4x) 6 pieces, individually adjustable
specs relayboard
8 optocouplers (error monitoring)
32 relays

Downloads

The EB1 controller is the next step in the line of our proven legacy controllers. Do you have one of our old controllers that needs replacing?

controller front panel

EB1

  • network updates
  • EBCloud ready
  • Ionsmoke ready
  • user-friendly
  • production: since 2020
  • support: until min. 2035
icon pdf download
data sheet
icon pdf download
sensor calibration

SC 2000

SC 2000 controller
  • the first digitally upgradeable controller
  • production: 1985-1998
  • support: until 2010

SC 9000

SC 9000 Controller
  • the successor
  • production: 1995-2020
  • support: until 2025
icon pdf download
data sheet

Platium 9000

Platium 9000 Controller
  • easy retrofitting for the SC 2000
  • produktion: 2000-2020
  • support: until2024
icon pdf download
data sheet

Platium

platium controller
  • new with USB ports
  • produktion: 2003-2019
  • support: until 2020
icon pdf download
data sheet

Downloads

Find PDF of our controllers here:
EB1, SC 2000, SC 9000, Platium 9000, and Platium.

Quote

Get in touch if you have any questions or need a quote.
